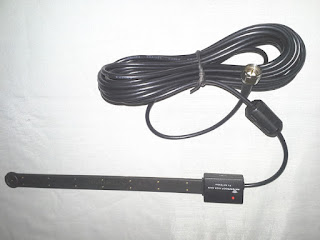

VCAN0961 Car DVB-T DVB-T2 Digital TV antenna aerial built-in signal enlarger booster

VCAN0961 Car DVB-T DVB-T2 Digital TV antenna aerial built-in signal enlarger booster

Selling Points:


DVB-T2 Car High Gain TV Antenna
*Built-in TV signal amplifier,enlarger, booster
*Frequency: VHF 170~230MHZ UHF 470~860MHZ
*Gain: > 25db
*Waterproof, outdoor or indoor
*LED light for working
*Easy to install, just Paste anywhere






Digital TV Antenna
*Built-in TV signal amplifier, enlarger
*Frequency: VHF-H170~230MHZ,
UHF470~860MHZ, V.S.W.R: <3
*High Gain: > 25db

1. TV antenna connector type
Default: SMA
We also can produce another MCX, IEC or F type if you need, please tell us before delivery when you order.

2. TV antenna cable length
Default: 5Meter
We also can produce if you need 2M, 3M, 6M or longer. Please tell us when order.

3. TV signal enlarger power supply.
Because of this VCAN antenna need 5V power supply from the tuner, please make sure that your tuner has this function. Otherwise the led light on antenna will not power on and at good tv reception performance.

Model

VCAN0961

Operating Voltage range

DC5±0.5 V

Operating current

20±3mA

Frequency Range(MHz)

470-860

V.S.W.R

2.5

Gain(dBi)

22±3dB

Input Impedance(Ω)

50

Polarization Type

vertical

Antenna Length(mm)

200

Line Length (mm)

5000

Connector Type

IEC  MCX

SMA  F type

Operating temperature

-20-85

Install the way

Adsorption

Paking details:
Product Name:
VCAN0961
Size per carton:38*30*22(cm)
Single weight:0.2 (kgs)
Quantity per carton:100 (pcs)
Weight per carton:12.6(kgs)
Single size:
22*7*4(cm)
