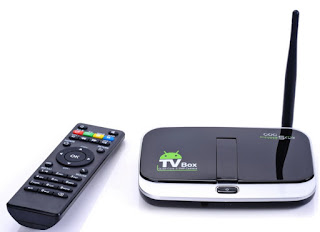

VCAN0957 Quad Core with camera Android 4.2 Smart Multimedia Player

VCAN0957 Quad Core with camera Android 4.2 Smart Multimedia Player
Selling Points:


*Android TV Box Quad Core
*Bulit-in 5.0 MEGA APIXEL Web camera  and  Mic
*Bulit-in Bluetooth
*Chipset: RK3188 28nm Cortex-A9  Quad core

* Android 4.2
* WIFI Support


Features:
*Android TV Box Quad Core
*Bulit-in 5.0 MEGA APIXEL Web camera  and  Mic
*Bulit-in Bluetooth
*Chipset: RK3188 28nm Cortex-A9  Quad core
* Android 4.2
* Internet windows IPTV set top box
* With TF Card Slot and USB port
* With HDMI out
* WIFI Support
* With External WiFi antenna


Paking details:

Product Name:
VCAN0957
Unit Weight including package:
0.9(KG)
Category
Item
Specification
Component Supplier
Application Process
Model Number:
VCAN0957

CPU
 Quad-Core  A31S
ALLwinner
GPU
PowerVR SG*544MP

Memory
2GB
SAMSUNG
FLASH
16GB
HY
HW
WIFI and Blue-tooth
WiFi 802.11b/g/n,wireless internet connecting ,Blue-tooth4.0
RELTEK8723
ETHERNET
RJ45

REMOTE CONTROL
Transmission2.4G wireless remote control
Location: IR or G-sensor

USB
USB HOST*4

POWER
POWER OFF/ON * 1

SD
TF  CARD SLOT*1

OPTICAL
OPITACL OUTPUT * 1

R/L(AUDIO)+CVBS
R/L(AUDIO)+CVBS (AV)

IR
IR module extendable to support

Camera
500W

MIC
Built-in

HDMI
HDMI OUTPUT*1



IE,IM,Mailbox,Video/Audio player,4K PLAYER

Application
Picture viewer, Text reader & Games

On-line Videa/Audio player

Video
•UHD H.264 2160p video decoding
•Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264,etc.
•H.264 High Profile [email protected] or [email protected] encoding
[email protected] 3D decoding, BD/SBS/TAB/FP supported
[email protected] 3D encoding
•Complies with RTSP, HTTP, HLS, RTMP, MMS streaming media protocols

Audio
•Two sets of I2S/PCM interfaces for Baseband and Bluetooth
•Two integrated differential analog MIC for headset and phone
•Integrated digital MIC interface
•Dedicated headphone/speaker/receiver outputs
•Two-channel audio ADC with 96dBA SNR
•Two-channel audio DAC with 100dBA SNR
