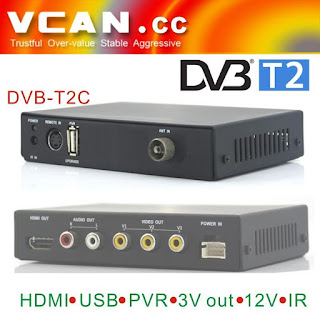

DVB-T2C decoder mobile digital car DVB-T2 TV receiver tuner DVB-T2 STB DVB-T2 modulator

DVB-T2C decoder mobile digital car DVB-T2 TV receiver tuner DVB-T2 STB DVB-T2 modulator



DVB-T2C Features:

1. Support H.264/AVC, MPEG2~MPEG4 Video Decode
2. Available to upgrade the firmware via USB slot
3. USB Recorder, PVR,
4. Standard for DVB-T and DVB-T2
6. Auto searching and updating bit rate information
7. Storage for 2000pcs channels
8. Memory function after power off
9. Support OSD TELETEXT
10. Multi Language Support: English, Russian,French, Germany, Spainish, Italian, Portuguese,Danish,Czech, WeCan do what you need
11. EPG program guide and PIG(Picture in Graphics )Function
12. 6MHz, 7MHz, 8MHz Band-wide
13. HDMI output (One route)
14. Video Output (Three Route)
15. Audio-R, Audio-L output
16. Support IR output and extended remote sensor receiver
17. Google DVB-T2C to get perfect technology support and update software.

Technical Parameters:

1. Input frequency: VHF 177.5MHz - 226.5MHz
UHF 474MHz - 858MHz
2. Modulate: QPSK/16 - QAM/256-QAM
3. Decode standard: MPEG4,MP@ML,MP@HL,H.264/AVC
4. Audio decode standard: MPEG-1, and-2,layer and 2, MPEG-4, HE-AAC
5. 4 Way Video Output (One way from power socket if need):
Output Resistance: 75 ohm
Output Voltage: 1.0`2.0mVp-p
Audio output: 2Vp-p
6. Power Supply: DC 12V~24V 6W
7. Connecting Terminal:
Active amplifier antenna input jack (5V supply), Quadrate car power input jack (Battery+, Battery-, ACC+) , R/L Audio 3X Video output jack (VCAN recommended design), External remote control IR cord jack, external power supply input jack, USB upgrade socket, HDMI High-definition output jack.
8. Applicable Power Supply: Car storage battery (12V~ 24V)
9. Outer dimension: 125mm x 85mm x 26mm
10. Application Temperature: -5 ~40 degree
11. Storage Temperature: -20~60 degree

Package details:

Unit weight
1.2 (kg)
Unit size
25*22*7 (cm)
Quantity per carton
20 (kg)
Weight per carton
18.5 (kg)
Size per carton
64*46*26(cm)
