DVB-T2C Features:

1. Support H.264/AVC, MPEG2~MPEG4 Video Decode
2. Available to upgrade the firmware via USB slot
3. USB Recorder, PVR,
4. Standard for DVB-T and DVB-T2
6. Auto searching and updating bit rate information
7. Storage for 2000pcs channels
8. Memory function after power off
9. Support OSD TELETEXT
10. Multi Language Support: English, Russian,French, Germany, Spainish, Italian, Portuguese,Danish,Czech, WeCan do what you need
11. EPG program guide and PIG(Picture in Graphics )Function
12. 6MHz, 7MHz, 8MHz Band-wide
13. HDMI output (One route)
14. Video Output (Three Route)
15. Audio-R, Audio-L output
16. Support IR output and extended remote sensor receiver
17. Google DVB-T2C to get perfect technology support and update software.

Technical Parameters:

1. Input frequency: VHF 177.5MHz - 226.5MHz
UHF 474MHz - 858MHz
2. Modulate: QPSK/16 - QAM/256-QAM
3. Decode standard: MPEG4,[email protected],[email protected],H.264/AVC
4. Audio decode standard: MPEG-1, and-2,layer and 2, MPEG-4, HE-AAC
5. 4 Way Video Output (One way from power socket if need):
Output Resistance: 75 ohm
Output Voltage: 1.0`2.0mVp-p
Audio output: 2Vp-p
6. Power Supply: DC 12V~24V 6W

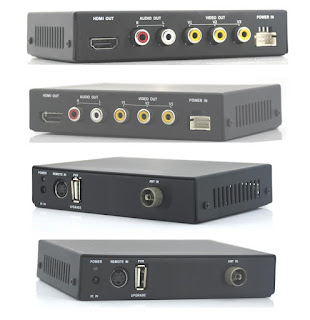

7. Connecting Terminal:
Active amplifier antenna input jack (5V supply), Quadrate car power input jack (Battery+, Battery-, ACC+) , R/L Audio 3X Video output jack (VCAN recommended design), External remote control IR cord jack, external power supply input jack, USB upgrade socket, HDMI High-definition output jack.
8. Applicable Power Supply: Car storage battery (12V~ 24V)
9. Outer dimension: 125mm x 85mm x 26mm
10. Application Temperature: -5 ~40 degree
11. Storage Temperature: -20~60 degree

faq

1. DVB-T2C is in the active antenna console?
VCAN: As our DVB-T2C tuner has 5V power supply switch in OSD menu, so DVB-T2C is better to use active amplifier signal enlarger antenna.(We will send you this type antenna free in the giftbox. Otherwise Please turn off the antenna power if you use normal antenna.

2. Now Only Russia is live on DVB-T2 at the moment.  Europe is still testing and has no country moved to DVB-T2 yet, DVB-T2C is compatible with DVB-T?
VCAN: Our DVB-T2C reception box can receive DVB-T signal,so it will be working in Europe and Russia both.

3. What is DVB-T2?VCAN: DVB-T2 is an abbreviation for Digital Video Broadcasting – Second Generation Terrestrial.
This system transmits compressed digital audio, video, and other data in "physical layer pipes", using OFDM modulation with concatenated channel coding and interleaving. The higher offered bit rate, with respect to its predecessor DVB-T, makes it a suited system for carrying HDTV signals on the terrestrial TV channel.
4. Can you make to show my LOGO at starting machine?
VCAN: Yes, WeCan make your logo as starting.
5. Your DVB-T2C can receive only 4 channel from 7. I want too many Channel and good quality.
VCAN: Please contact with VCAN for new software update. DVB-T2C USB jack is for PVR recorder and upgrade.
6. Do you know which countries DVB-T2 standard is available?
VCAN: United Kingdom, Netherlands, Denmark, Belgium, Luxembourg, Sweden, Finland, Italy, Croatia, Austria, Slovakia, Czech Republic,Ukraine, Belarus etc.

Item
DVB-T
DVB-T2
Forward Error Correction (FEC)
Convolutional Coding + Reed Solomon 1/2, 2/3, 3/4, 5/6, 7/8
LDPC + BCH 1/2, 3/5, 2/3, 3/4, 4/5, 5/6
Modulations
QPSK, 16QAM, 64QAM
QPSK, 16QAM, 64QAM, 256QAM
Guard Interval
1/4, 1/8, 1/16, 1/32
1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128
Discrete Fourier transform (DFT) size
2k, 8k
1k, 2k, 4k, 8k, 16k, 32k
Scattered Pilots
8% of total
1%, 2%, 4%, 8% of total
Continual Pilots
2.6% of total
0.35% of total

SystePackage details:


Unit weight
1.2 (kg)
Unit size
26*23*10 (cm)
Quantity per carton
20 (kg)
Weight per carton
18.8 (kg)
Size per carton
37*42*38(cm)
m differences between DVB-T and DVB-T2
