VCAN1101 HD ISDB-T Home TV receive box USB support with PVR function for Philippines

VCAN1101 HD ISDB-T Home TV receive box USB support with PVR function for Philippines

Selling Points:


Philippines ISDB-T
TV plus Black Box
HDMI / USB PVR
Analog TV upgrade Digital TV
Digital ISDB-T HD/MPEG-4






VCAN1101 HD ISDB-T Home TV receive box USB support with PVR function for Philippines



RF Input/Demodulation
Connector Type:F-Female x1 for ANT input;F- Female x1 for LOOP THROUGH
Input Frequency:(UHF)470-866MHz,(VHF)170-230MHz
Bandwidth:6,7,8MHz
Signal Input level:-80dBm - -20dBm
Input Impedance:75Ohm
ANT Power:5V(On/Off),Imax=100mA
Demodulation Scheme"QPSK,16-QAM,64-QAM
Demodulation Type:OFDM, fully compliant with ISDB-T Standard
Media Features
Picture:JPEG,BMP,PNG
Power Supply
Adapter
AC Input:[email protected]/60Hz±5%
Power Consumption:Max10W
Memory
Flash:32Mbit
DDRII Memory:512Mbit
Physical Characteristics
Physical Size:170mm * 96mm * 40mm
Front Panel
Key:POWER, CH+,CH-
Indicator:LED Indicator for Power On/Off
Remote Control Input:Infra-red receiver
Display:Option for 4 Digits 7-segment LED display
Connector:1xUSB2.0 interface

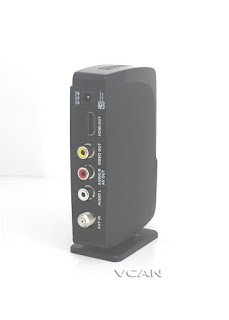

Rear Panel
Connector:2 x F-Female connector for ANT.IN and Loop THROUGH

HDMI 1.3 interface, up to 1080p
1xAV RCA( CVBS, L/R)
1xCOAXIAL
Remote Specifications
Battery:(AAA 1.5V)*2
Operation Distance:8m Min.(front distance from receiver)
Operation Angle Range:±45°(horizontal)20°(vertical)
Channel List from Philippines market:
PTV SD1
PTV SD2
PTV SD3
PTV 1SEG
GMA
GMA 1SEG
GMA News TV
UNITV 1SEG
UNITV-1
UNITV-2
ADDTV
ABS-CBN
ABS-CBN One Seg
CINEMO!                      Encrypted
DZMM Teleradyo           Encrypted
Knowledge Channel       Encrypted
SPORTS+ACTION
YEY!                           Encrypted
TV Plus Xtra Channel     Encrypted
SERVICE 1Seg
Service HD
BEAM SD1
BEAM SD2
BEAM 1seg
ETC+D
JACKCITY+D
2NDAVENUE+D
HSN+D
BTV+D
GNTV_SD
UNTV-3
TV5 1SEG
TV5 SD
Paking details:

Product Name:
VCAN1101
Unit Weight including package:
0.7(KG)
