Selling Points:

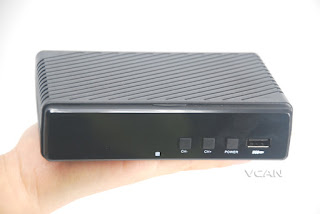

Home ATSC receiver
Full HD ATSC receiver with USB media playback
Support multi-language
MPEG-4 part10/MPEG-2 ISO/IEC 13818
Smaller slight design
Plastic box, cheaper price
Paking details:
|
| Key Features | Packing Container Loading | Container Loading | ||||||||||
| Fully supports ATSC HD MPEG 2, MPEG4,HD H.264, ,1080i,1080p | Length | Width | Height | Quantity/20Dry | 10000 | |||||||
| HDMI for multimedia play, standard and high definition output | UNIT | 132 | 90 | 34 | ||||||||
| PVR function via USB 2.0 | GB | 210 | 200 | 48 | Quantity/40Dry | 20710 | ||||||
| Carton | 518 | 230 | 235 | |||||||||
| Quantities per carton:10pcs | Quantity/40HC | 24300 | ||||||||||
| Picture | Input and output | |||||||||||
 | USB: USB2.0 | |||||||||||
| RF IN/ OUT | ||||||||||||
| L/R,VIDEO | ||||||||||||
| HDMI output | ||||||||||||
| CH3/CH4 | ||||||||||||
| Accessory | ||||||||||||
| Remote Control, I/M | ||||||||||||
| Main Features | Tuner | |||||||||||
| Fully ATSC compliant for North America with NTIA cert. | ATSC Terrestrial tuner | |||||||||||
| ATSC Terrestrial broadcast channels 2-69 | RF input frequency: 54-803MHz | |||||||||||
| HDMI for multimedia play, standard and high definition output | Bandwith: 6MHz | |||||||||||
| Auto and manually scan all available TV and radio channels | Input level: -83 - -5dBm | |||||||||||
| Aspect ratio 16:9 and 4:3 | RF 3/4CH and loop through function | |||||||||||
| HDMI, RCA output,CH3/CH4 | Powerful Multimedia Features | |||||||||||
| Multi-language OSD & Subtitles (English/French/Spanish) | Photo: JPEG,BMP,PNG | |||||||||||
| Support EPG, display Present/Next TV program | Audio: MP3、AAC | |||||||||||
| EIA 608 Closed Caption | Video: MPEG1、MPEG2、MPEG4、H264、 | |||||||||||
| PVR ready function via USB 2.0,Timeshift function | Motion JPEG (.avi.mpg、.dat、.vob、.div、.mov、.mkv、 | |||||||||||
| NTSC Loop Through supported | .mjpeg、.ts、.trp) | |||||||||||
| Parental control (V-Chip) | NTFS、FAT32、FAT16 | |||||||||||
| Demultiplexer | Decording | |||||||||||
| Standard ISO/IEC 13818-1; ARIB STB-B10 | MPEG transport stream and A/V decoding | |||||||||||
| Input max. bit stream rate: 36Mbps (serial) / 9Mbps (parallel) | Video decoder: ATSC A/72 MPEG2/4 H.264 SD&HD | |||||||||||
| Aspect ratio: 4:3, 16:9 | ||||||||||||
| MP@HL HDTV, MP@ML SDTV ATSC formats | ||||||||||||
| Video resolution: 720X480 NTSC/HDMI 1080P | ||||||||||||
| Demodulation: | Audio standard: ISO/IEC 14.496-3 | |||||||||||
| ATSC NTIA Standard, 8VSB | Audio mode: mono, dual-channel, stereo | |||||||||||
| QPSK, 64QAM, 256QAM | ||||||||||||
| FEC: 1/2, 2/3, 3/4, 4/5,5/6, | ||||||||||||
| Guard Interval: 1/4,1/8,1/16,1/32,1/128 | ||||||||||||
| FFT Mode: 2K, 8K, 32K | ||||||||||||
