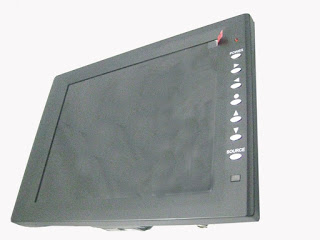

VCAN0609 10 inch LCD Monitor with BNC HDMI DVI AV PC Audio monitor

VCAN0609 10 inch LCD Monitor with BNC HDMI DVI AV PC Audio monitor
Selling Points:


10″HD Professional Touch Monitor with HDMI

Standard VGA (15 pin D-SUB RGB) and Two RCA/BNC video input

Built-in speaker amplifier/PC audio input and earphone jack

Operating All Systems: DOS/Windows  9X ME 2K XP  7 Vista  NT  CE / LINUX / Mac,etc.


Model No:VCAN0609


10 inch LCD Monitor with BNC HDMI DVI AV PC Audio monitor


Features:
Adopt industrial LCD screen, high resolution of 1024*768 (Native) High contrast and brightness, wide viewing angle, which greatly improve the image layering.
One of world's most high-precision four wires resistive type touch-screen for PC display. (USB port/COM RS232 optional)Sensitive touch-screen, quick response
dard VGA (15 pin D-SUB RGB) and Two RCA/BNC video input
Built-in speaker amplifier/PC audio input and earphone jack
Operating All Systems: DOS/Windows  9X ME 2K XP  7 Vista  NT  CE / LINUX / Mac,etc.
Can support almost all kinds of resolution
Low radiation and consumption. High reliability, good stability, especially for work in harsh environments.
Accessories:
VGA cable;Touch USB cable;Video/audio cable;BNC cable (optional);Remote ;Power Supply Adaptor;Power
Lead(US、EU 、UK etc type);Software touch driver CD;User Manual (English);Touch PanBracket
Typical Applications:
Entertainment /Casino Systems;Outdoor and indoor Kiosks;Entertainment;Transport and Ticketing;Television
station;Education;Exhibition;Advertisement;Hotel/Hospitality;Car PC;Industry equipment;Banking.
Customised Solutions:
Ordering Information (optional function)
10″LCD Monitor with BNC/HDMI/DVI/AV/PC/Audio
10″ LCD Monitor with BNC /HDMI/DVI/AV/PC/Audio/Touch
10″LCD Monitor with DVI/AV/PC/Audio
10″HD Professional Touch Monitor

Description:
*Case/Bezel Colour: Black/silver
*Touch monitor Performance: Standard
*Display Type: 4:3 Ratio10″Active Matrix TFT LCD
*Active Display Area: 196.608(W) X 147.456(H) mm
*Native Resolution : 1024 x 768@ 60Hz _1600 x 1200 @ 75Hz
*Sychronization Range: 30-80 KHz horizontal, 55-75 Hz Vertical
*Pixel Pitch:0.192mm x 0.192mm
*Pixel Response Time Rise + Fall (Typically): 30ms
*Plug and Play: VESA DDC 1/2B
*On Screen Display (OSD): Remote OSD
*Colours: 16.7 million
*Brightness: 400 cd/m2
*Contrast Ratio Typically: 500:1
*ViewingAngle Horizontal (left/right): 170° (85°/85°)
* (From Centre, CR>=5) Vertical (up/down): 160° (70°/90°)
*LED backlight life Hrs: 50,000
*Input Video Format:  HDMI/DVI/Analog RGB/CVBS NTSC/PAL (AUTO)
*Touchscreen Interface: Serial COM (RS232) or USB
Touch Response Time Serial/USB: 10.4ms
*Touch Sensitivity: Fixed
*Touch Pen Hitting Life: >= 1milions times
*Monitor Dimensions: 268 x 199 x 41(mm)
*Shipping Carton Dimensions: 303 x 307x 101(mm)
*Provider Weight (approximately) Monitor/Shipping: 0.6kg
*Power Supply: External: 85-265VAC, 50-60 Hz
*Power Consumption: <20 W Typ
*Temperature Range: Operating:0℃-50℃, Storage:-20℃-80℃
*Relative Humidity Non Condensing: Operating:10%-90%,
Storage 5%-90%
*Warranty: 1 year
*Agency Approvals: FCC, CE, RoHS


Paking details:

Product Name:
VCAN0609
Unit Weight including package:
1.6(KG)
