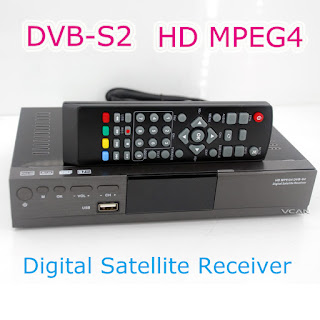

VCN1079 HD MPEG4 DVB-S2 Digital Satellite TV Receiver

VCN1079 HD MPEG4 DVB-S2 Digital Satellite TV Receiver

Selling Points:


HD MPEG4 DVB-S2


Digital Satellite TV Receiver






VCN1079 HD MPEG4 DVB-S2 Digital Satellite TV Receiver


CPU:ALI3510  Embedded  Demodulator
Memory:32X16Mbit  DDR2 Frequency1066
Flash:32M bytes
TUNER:AV2018
USB 2.0 Embedded One Host,
Front Panel 4-digit LED display on front panel
red LED Standby,green  LED Lock
Front Panel key(MEN,CH+,CH-,VOL+,VOL-,OK,POWER)Optional
Rear Panel Tuner RF input connector IEC60169-2/T-TYPE 75Ohm Unbalanced
HDMI V1.3
AV RCA x1
Coaxial x1
RS-232(optional)
Power  AC100~240V  50Hz/60Hz
Demodulation
Demodulation Frequency Range 950MHz-2150MHz
Sensitivity  Level  - 10~ - 81dBm
Mode IFFT 2k,8k
FEC Mode  1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
Guard intervals  1/4,1/8,1/16,1/32
Constellation  QPSK、8PSK、16APSK
"Neighboring channels
immunity and  Protection" According to ETSI TR 101 190 V1.2.1
Active Ant Power 13/18V DC @ 500mA MAX,Overload Protection

Sortware Features
Fully comply with DVB-S/S2, MPEG-2/4 H.264 Standard
Supports single / multiple or  blind search satellite search
Automatic PAL/NTSC conversion
DiSEqC 1.0 / 1.1 / 1.2/1.3
Various channel editing function(favorite,move,lock,skip,delete,rename,find,sort)
Support  BISS KEY RS-232(optional) DONGLE(optional)
Support teletext/subtitle/muti-language

Powerful and highly effective 7-day EPG function
AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen
USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback
Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P
 Decoder
Video Decoder
Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818
MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps)
MPEG-2 Main Profile# Main Level(15Mbps)
H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps)
Audio Decoder
MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 (Dolby Digital), AAC-LC, WMA
E-AC-3 (Dolby Digital Plus) decoding  HE-AAC 5.1 multi-chhannel decoding
Powerful Multimedia Features
MediaCodec avi. mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts etc
Audio Codec WMA,MP3,AAC (.wma,.mp3,m4a)
Photo Codec "JPEG, BMP, PNG
Multimedia  License
Optional  DTS, Dolby Digital, Dolby Digital Plus, RM/RMVB, Divx  License.
Accessories
Accessories gift box
AV cable
HDMI cable optional(cost USD0.9)
IR remote control
User Manual
Paking details:

Product Name:
VCAN1079
Unit Weight including package:
1.1(KG)
